Step 08 - Agentic AI - Model Context Protocol

Building on top of the Function Calling concept of the previous step, let’s explore how we can make this idea more distributed with the Model Context Protocol pattern.

Basically, we will allow the LLM to act as a true agent, calling a predefined set of tools using the Model Context Protocol to further enhance its knowledge and/or functionality.

Model Context Protocol

The Model Context Protocol serves as an open standard, facilitating the creation of secure, bidirectional links between data repositories and AI-driven tools. The design is uncomplicated; developers can either make their data accessible via MCP servers or construct AI applications (MCP clients) that interface with these servers.

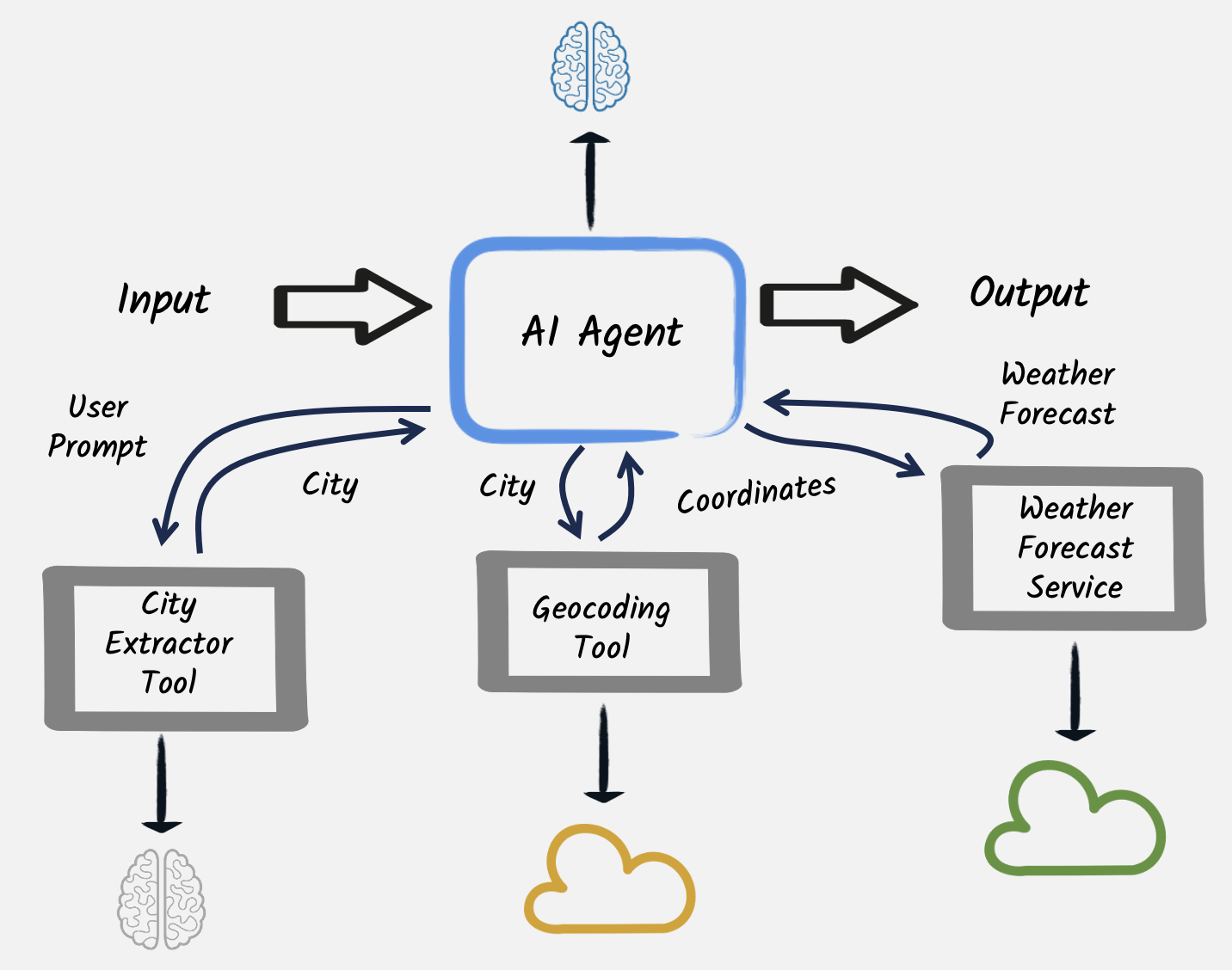

MCP

In this step, we are going to see how to implement both MCP servers and clients in our application. The MCP client will be integrated with our existing code, while the MCP server will be a standalone application that the MCP client’s agent will call to retrieve additional context.

The final code for the client application, the AI service, is available in the step-08 folder. As before, we recommend you follow the step-by-step guide to understand how it works, and the different steps to implement this pattern.

The MCP Weather Server

Our MCP server will provide a wrapper around Open-Meteo, a free weather forecast and historical weather service. It will act as a REST client to the Open-Meteo REST API, exposing an MCP interface to it so that it can be invoked by AI agents. Our AI service will use it to retrieve weather information that is relevant to a customer’s booking.

You will find the MCP server application in the step-08-mcp-server folder.

The dev.langchain4j.workshop.WeatherClient class defines a template interface that maps to the Open-Meteo weather service REST API. The @RegisterRestClient annotation automatically generates a client instance based on what is defined and annotated in the template interface. As a result, you don’t have to worry about all the boilerplate code, such as setting up a client class, connecting to the remote server, or invoking the correct URI with the correct parameters. You can simply inject an instance of the client bean using CDI, wherever you want to consume it.

WeatherClient.java
package dev.langchain4j.workshop;

import jakarta.ws.rs.GET;
import jakarta.ws.rs.Produces;
import jakarta.ws.rs.QueryParam;
import jakarta.ws.rs.core.MediaType;

import org.eclipse.microprofile.rest.client.inject.RegisterRestClient;

@RegisterRestClient(baseUri = "https://api.open-meteo.com/v1/forecast")
public interface WeatherClient {

    @GET
    @Produces(MediaType.APPLICATION_JSON)
    String getForecast(
        @QueryParam("latitude") double latitude,
        @QueryParam("longitude") double longitude,
        @QueryParam("forecastDays") int forecastDays,
        @QueryParam("hourly") String hourly
    );
}

The dev.langchain4j.workshop.WeatherTools class provides the MCP server implementation. It defines the methods that are annotated with @Tool, just like in the previous step for our local function calling. The only difference is that in this case, the MCP Tools we define will be available over the wire using the MCP protocol and a given transport type.

WeatherTools.java
package dev.langchain4j.workshop;

import org.mcp_java.annotations.tools.Tool;
import org.mcp_java.annotations.tools.ToolArg;

import jakarta.enterprise.context.ApplicationScoped;
import jakarta.inject.Inject;

import org.eclipse.microprofile.rest.client.inject.RestClient;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

/**
 * MCP Tools for accessing Meteo API functionality.
 */
@ApplicationScoped
public class WeatherTools {

    private static final Logger logger = LoggerFactory.getLogger(WeatherTools.class);

    @Inject
    @RestClient
    private WeatherClient weatherClient;

    /**
     * Query the weather for the specified latitude and longitude
     *
     * @param lattitude
     *          Latitude of the location
     * @param longitude
     *          Longitude of the location
     * @return String
     *          The response from the Meteo API
     */
    @Tool(
        name = "search_weather",
        title = "Search for weather.",
        description = "Search for weather at the specified location. "
    )
    public String getForecast(
        @ToolArg(
            name = "latitude",
            description = "Latitude of the location."
        )
        double latitude,
        @ToolArg(
            name = "longitude",
            description = "Longitude of the location"
        )
        double longitude
    ) {

        logger.info("Querying the weather for location {}, {}", latitude, longitude);

        try {
            return weatherClient.getForecast(
                latitude,
                longitude,
                16,
                "temperature_2m,snowfall,rain,precipitation,precipitation_probability"
            );
        } catch (Exception e) {
            logger.error("Error querying weather", e);
            throw new RuntimeException("Failed to query weather: " + e.getMessage(), e);
        }
    }
}

You can see that the WeatherTools class injects an instance of our WeatherClient interface. It also defines the getForecast method that is annotated with the @Tool annotation. The arguments for the getForecast annotation, latitude and longitude are annotated with the @ToolArg annotation. The @Tool and @ToolArg annotations are used when generating a description of the tool for MCP clients. Finally, you can see the that getForecast method simply invokes the getForecast method on the WeatherClient interface, which will invoke the Open-Meteo weather service REST API.

The relevant dependencies deined in the pom.xml file are as follows:

pom.xml
<dependency>
    <groupId>dev.langchain4j.cdi.mcp</groupId>
    <artifactId>langchain4j-cdi-mcp-server</artifactId>
</dependency>
<dependency>
    <groupId>dev.langchain4j.cdi.mcp</groupId>
    <artifactId>langchain4j-cdi-mcp-portable-ext</artifactId>
</dependency>

Easy right? With just a few lines of code, we were able to build a full-blown MCP server that would require much more work with any other stack or language out there! LangChain4J FTW!

Go ahead and start the server from the step-08-mcp-server folder in a separate terminal window/tab:

 ./mvnw liberty:dev

Now, let’s configure our client app to use the newly built MCP server.

A new MCP client dependency

LangChain4j supports MCP with equally minimal work. To use it, we need to add a new MCP client dependency. Open the pom.xml file in your main project (i.e., NOT the one containing the MCP Server) and add the following dependency:

pom.xml
<dependency>
    <groupId>dev.langchain4j</groupId>
    <artifactId>langchain4j-mcp</artifactId>
</dependency>

The LangChain4j MCP dependency will allow us to call remote MCP servers. Remember, MCP servers can be written in Java, like the one we created above, but in fact they can be any kind of technology that supports the MCP protocol.

Configuring the MCP client

Now that we have the dependency, we just need to configure our AI service to call our MCP server using the http transport-type. For simplicity, we will use LangChain4j CDI to declaratively create the MCP client. In the src/main/resources/META-INF/microprofile-config.properties file, add the following configuration:

microprofile-config.properties
dev.langchain4j.cdi.plugin.mcptransport.class=dev.langchain4j.mcp.client.transport.http.StreamableHttpMcpTransport
dev.langchain4j.cdi.plugin.mcptransport.config.url=http://localhost:9081/mcp
dev.langchain4j.cdi.plugin.mcptransport.config.logRequests=true
dev.langchain4j.cdi.plugin.mcptransport.config.logResponses=true

dev.langchain4j.cdi.plugin.mcpclient.class=dev.langchain4j.mcp.client.DefaultMcpClient
dev.langchain4j.cdi.plugin.mcpclient.config.transport=lookup:@mcptransport

dev.langchain4j.cdi.plugin.mcp.class=dev.langchain4j.mcp.McpToolProvider
dev.langchain4j.cdi.plugin.mcp.config.mcpClients=lookup:@mcpclient

Let’s look at the configuration:

  • mcptransport: The mcptransport properties create and configure an instance of the StreamableHttpMcpTransport class. You can see that config.url property is pointing to the endpoint for the MCP weather server and that it is configured to log requests and responses.
  • mcpclient: The mcpclient properties create and configure the MCP client itself, here using the DefaultMcpClient class and referring to the mcptransport bean defined above.
  • mcp: The mcp properties create and configure an instance of the McpToolProvider class. This can reference a list MCP clients in the config.mcpClients property. The bean defined here will be referenced by the AI service.
Equivalent code

The properties defined in the microprofile-config.properties file are equivalent to the following code:

// Create the MCP transport for the weather service
McpTransport weatherServiceTransport = StreamableHttpMcpTransport.builder()
    .url("http://localhost:9081/mcp")
    .logRequests(true)
    .logResponses(true)
    .build();

// Now create the McpClient for the weather service
McpClient mcpClient = DefaultMcpClient.builder()
    .transport(weatherServiceTransport)
    .build();

McpToolProvider toolProvider = McpToolProvider.builder()
    .mcpClients(mcpClient)
    .build();

We’ll add a toolProviderName attribute to the @RegisterAIService annotation on our AI Service to reference the MCP tool provider configured above. We will also add some instructions to the prompt to make the model calls retrieve the current weather for a car rental location, and provide suggestions on what special equipment the driver might need.

Update the CustomerSupportAgent.java file, as follows:

CustomerSupportAgent.java
package dev.langchain4j.workshop;

import dev.langchain4j.cdi.spi.RegisterAIService;
import dev.langchain4j.service.MemoryId;
import dev.langchain4j.service.SystemMessage;
import dev.langchain4j.service.TokenStream;
import dev.langchain4j.service.UserMessage;

import jakarta.enterprise.context.ApplicationScoped;

@RegisterAIService(
    streamingChatModelName = "customer-support-agent",
    chatMemoryProviderName = "customer-support-agent-memory",
    contentRetrieverName = "doc-retriever",
    tools = { BookingRepository.class },
    toolProviderName = "mcp",
    scope = ApplicationScoped.class
)
public interface CustomerSupportAgent {

    @SystemMessage("""
            You are a customer support agent of a car rental company 'Miles of Smiles'.
            You are friendly, polite and concise.
            If the question is unrelated to car rental, you should politely redirect the customer to the right department.

            When calling tools or functions, strictly use JSON objects,
            do not wrap in quotes or use plain strings.

            When asked to provide details about a reservation,
            provide weather details and gently try to upsell the customer based on this info.

            Today is {current_date}.
        """
    )
    TokenStream chat(@MemoryId String sessionId, @UserMessage String userMessage);
}

Testing the function calling

Let’s test the function calling. Make sure the application is running (./mvnw liberty:dev).

Open your browser and go to http://localhost:9080. In the chatbot, let’s try the following interactions:

You
Hello, I would like to retrieve information about my booking.

AI: Sure, I can help with that. I’ll need a bit more information to proceed: 1. Your first and last name to look up the booking. 2. The booking ID associated with your reservation. Please provide these details so I can assist you further.

You
My name is Speedy McWheels and my booking id is 2.

AI: Hello Speedy, Here are the details for your booking (ID: 2): - Pick-up Date: June 30, 2026 - Drop-off Date: July 2, 2026 - Location: Sao Paulo, Brazil I checked the weather forecast for Sao Paulo during your stay, and it looks like you’ll experience mild temperatures ranging from around 10°C to 25°C, with some light rain expected on July 1st. Given the possibility of rain, would you like to consider upgrading to a vehicle with better traction or additional comfort features for a more pleasant drive? I’d be happy to help you with that!

You
I need to know if need to pack snow chains. Can you check the weather forecast for that trip and advise?

AI: Based on the weather forecast for your rental period in São Paulo, you definitely won’t need snow chains. The temperatures are expected to stay between 8°C and 25°C with zero snowfall recorded. You might just want to pack a light jacket or raincoat for the cooler evenings and the chance of light rain. If you’d prefer extra comfort during the cooler nights, I’d be happy to help you upgrade to a vehicle with heated seats or a more robust suspension. Just let me know if you’d like to see those options!

Conclusion

In this step, we explored how to work with MCP servers and clients within our application, enabling us to create versatile agents that can not only reason but also interact dynamically with remote systems that can provide additional functionality and data to our application.

An MCP server in this context is very similar to the concept of local function calling we explored previously, except it’s running in a remote application. This allows us to interface with (and build) reusable components.

As you could see, the actual implementation of the MCP server is also entirely customizable.

However, introducing tools and function calling also comes with new risks, such as LLM misbehavior (e.g., calling functions excessively or with incorrect parameters) or vulnerabilities to prompt injection. In the next step, we’ll explore a straightforward approach to mitigate prompt injection using guardrails, ensuring safer and more reliable interactions.
